User Guide

Items

Items are the core data elements that flow through analysis pipelines. They serve two main purposes: carrying data for analysis and accumulating insights (facts) throughout processing.

Core Concepts

Item Structure

  • Each item represents a distinct element (like a file, class, or method)

  • Items maintain their identity throughout the entire pipeline

  • A single item can flow through multiple pipeline routes simultaneously

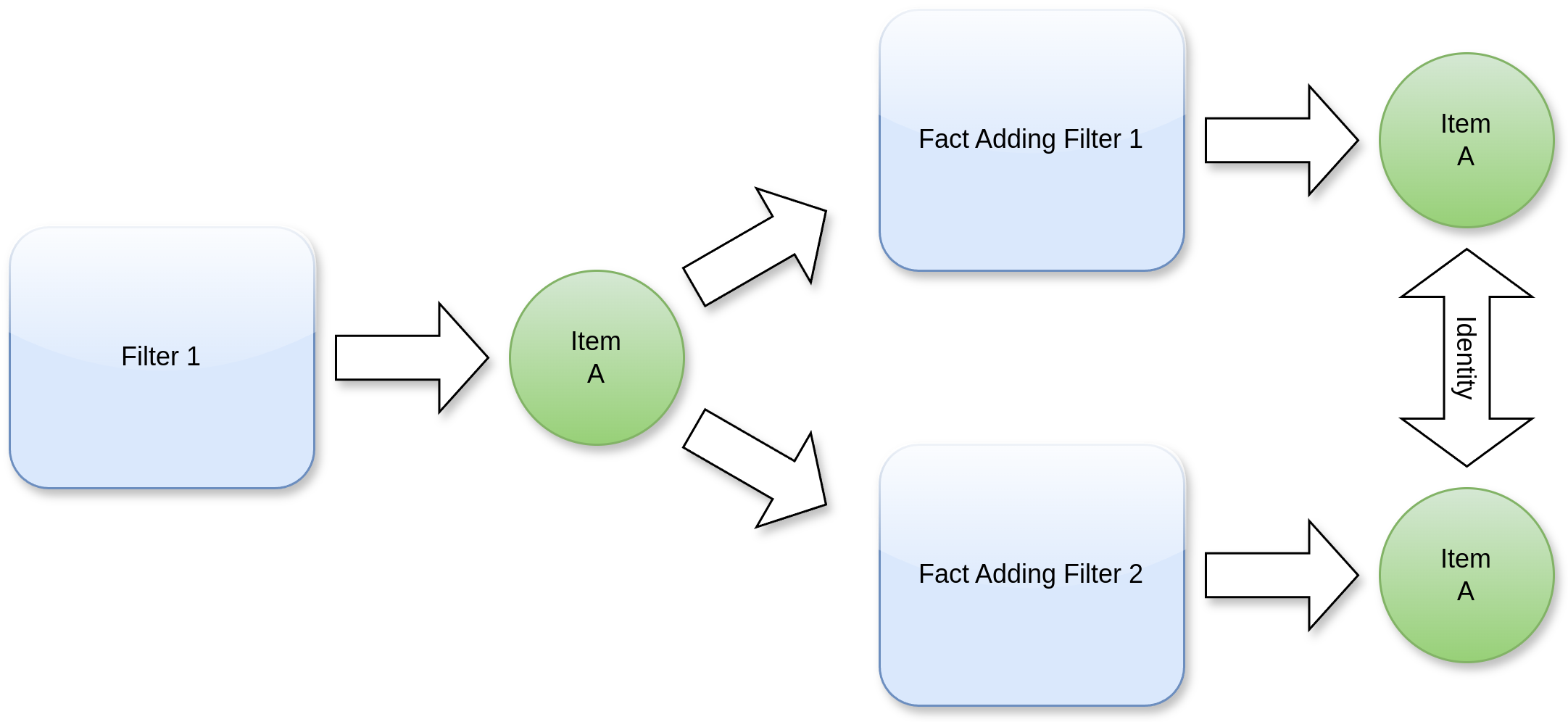

Facts

Facts are pieces of metadata or insights that get attached to items:

  • Added by filters during processing

  • Accumulate across different pipeline stages

  • Persist with the item regardless of its path through the pipeline

../_images/Items.png

Important Considerations

Fact Management

  • Facts primarily serve reporting and post-processing purposes

  • New facts can be added at any point in the pipeline

  • Facts from all processing routes merge into the same item

Best Practices

  • Don’t assume specific facts will be present during processing

  • Avoid dependencies on facts set by other filters

  • Design filters to be independent of fact presence

  • Consider fact presence as optional enrichment rather than required data

Pipeline Behavior

  • Items maintain their identity throughout processing

  • Multiple pipeline routes can process the same item concurrently

  • All facts gathered across different routes accumulate on the original item

  • Order of fact addition may vary depending on pipeline execution

When to Use Facts

  • For collecting metadata about analyzed elements

  • In final reporting stages

  • For post-processing analysis

  • When additional context is helpful but not critical

Warning

Warning

Never design filters that depend on facts being present from previous processing steps. The order of processing is not guaranteed, which could lead to unreliable results.

Filter

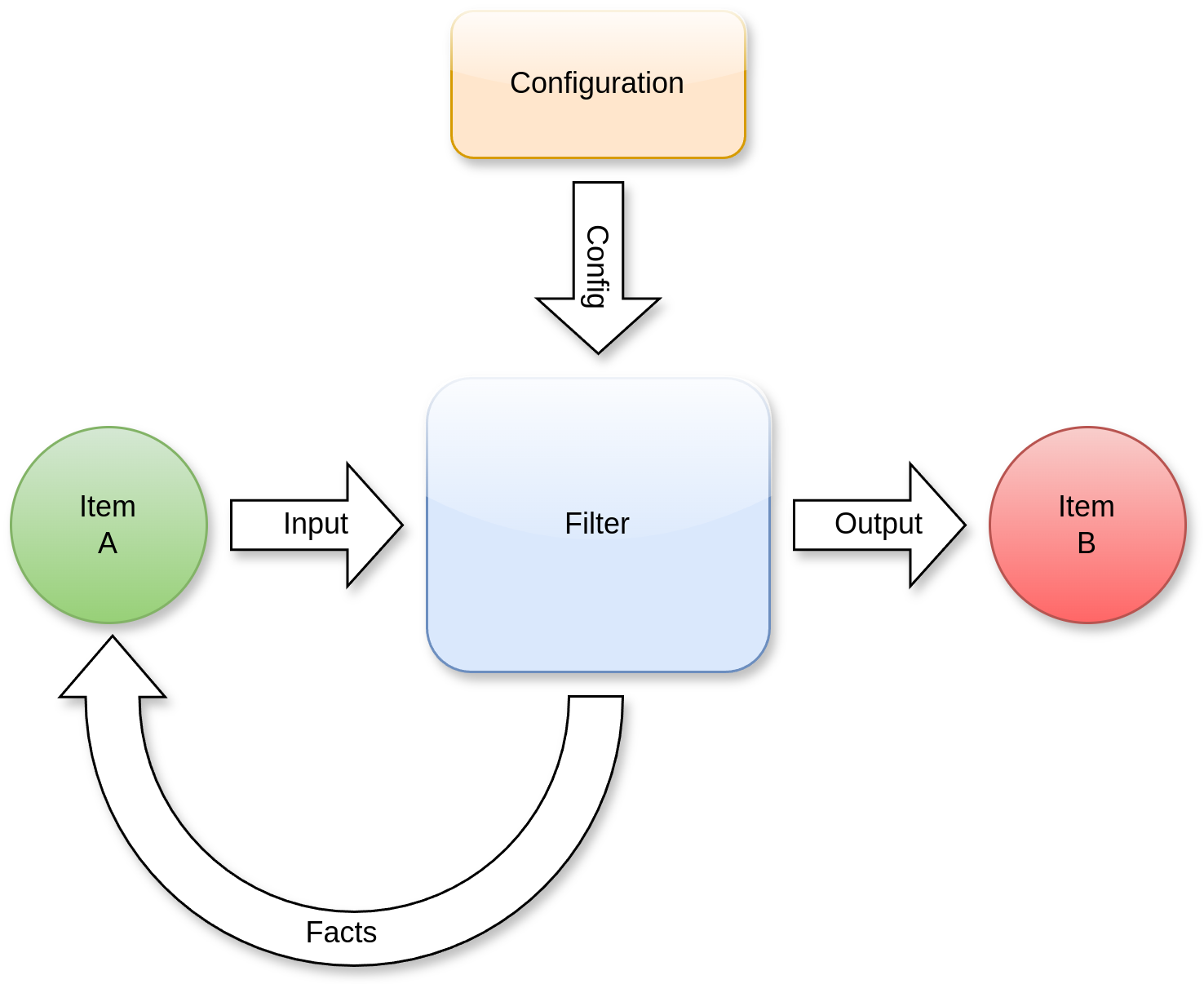

A Filter is a fundamental component that transforms input items into output items through a defined process. Filters can be chained together to create sophisticated analysis pipelines.

Core Concepts

Processing Flow

  • Filters accept input items of a specific type

  • Each filter processes these items according to its configuration

  • The filter produces output items that can serve as input for subsequent filters

Fact Enhancement

During processing, filters may enhance the original input items by adding new facts. These facts are metadata discovered during the filtering process.

Example Workflow

Consider a Python class analysis scenario:

  1. Input: A PythonClassItem enters the filter

  2. Processing: A PythonMethodFilter analyzes the class structure

  3. Output:

    • Produces ClassMethod items representing each method in the class

    • Adds a new fact to the original class item with key methods containing the method names

Benefits

  • Modular Analysis: Each filter focuses on a specific aspect of analysis

  • Extensible Pipeline: Filters can be combined in different ways to achieve various analysis goals

  • Fact Accumulation: Knowledge gathered during filtering enriches the analysis results

  • Reusable Components: Filters can be reused in different analysis contexts

../_images/Filter.png

Reports

Overview

Reports are the final output stage of analysis pipelines, serving as the destination for processed items that need to be presented or exported. They provide various methods to present the analysis results, from simple data dumps to complex API integrations.

Output Formats

Reports can generate output in multiple formats: * YAML dumps for structured data * REST API calls for integration with external systems * Custom formatters for specialized output needs

Item Filtering

Reports use a labeling system to determine which items should be included. Items can be filtered using: * Dedicated filters with customizable logic * Label-based selection criteria * Threshold-based conditions

Example Use Case

A cyclomatic complexity report might only include functions where: * The complexity exceeds a defined threshold * The item is labeled as “function” or “method” * The analysis indicates potential maintenance issues

This selective reporting ensures that only relevant items appear in the final output, making reports more focused and actionable.
